Intel® Core™ Ultra desktop processors (series 2) are the ultimate desktop and entry workstation platform, engineered to unlock new levels of intelligent performance for the most demanding daily tasks. AI PCs use Intel® Core™ Ultra processors, with the CPU, GPU, and NPU working together for optimal performance, efficiency, and security.

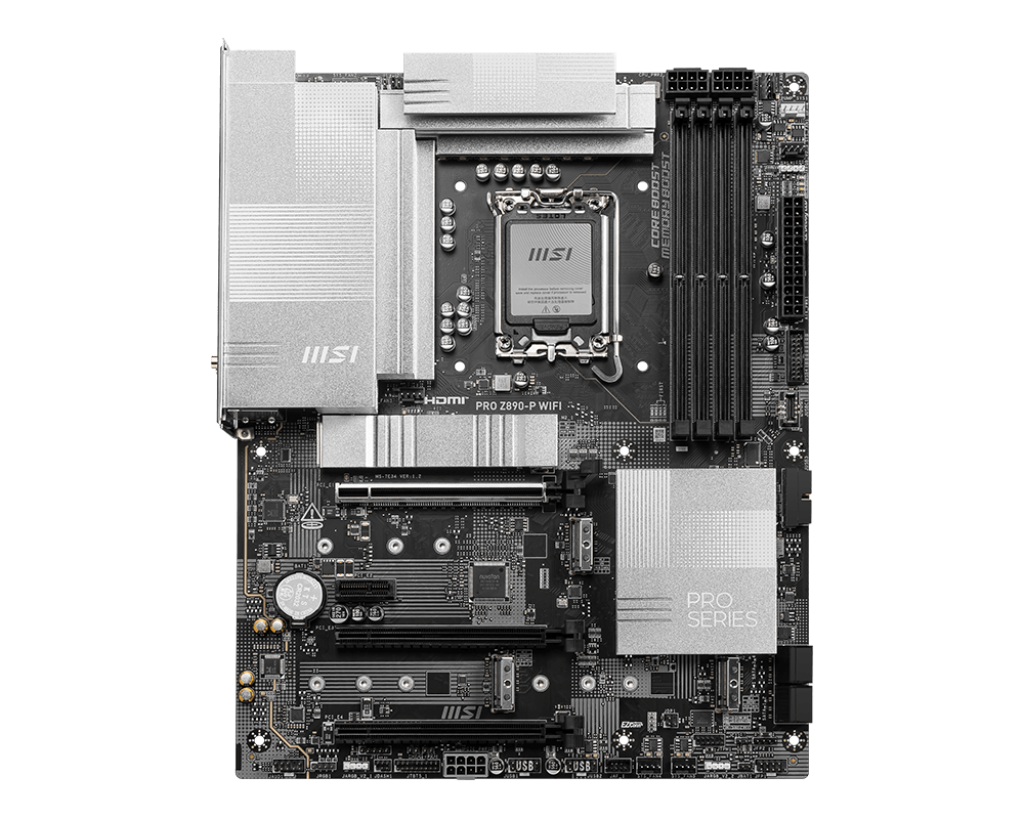

MSI PRO Z890-P WIFI Motherboard Features:
Intel Z890 Chipset
4 x DDR5, Maximum Memory Capacity 256 GB
3 x PCI-E x16 slot
1 x PCI-E x1 slot
PCI_E1 PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 PCIe 4.0 supports up to x1 (From Chipset)
PCI_E3 PCIe 4.0 supports up to x4 (From Chipset)
PCI_E4 PCIe 4.0 supports up to x4 (From Chipset)
4 x M.2 slot
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices

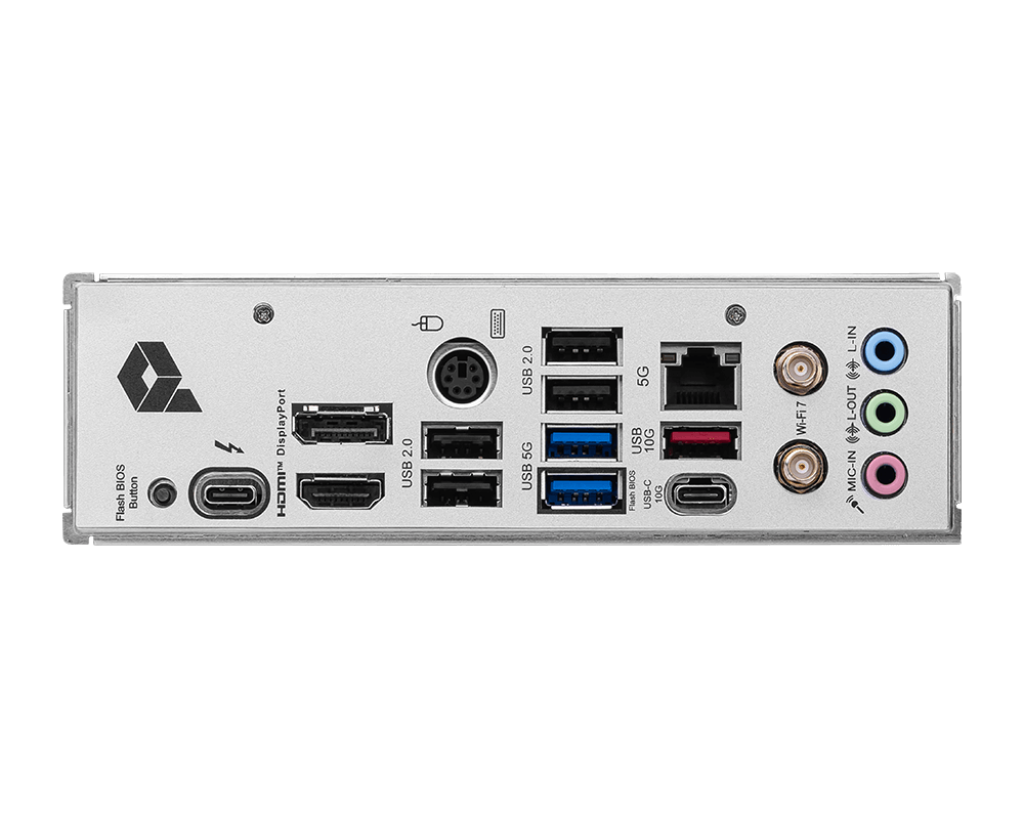

4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 5Gbps Type A (Rear)
4x USB 5Gbps Type A (Front)
1x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Rear)
1x USB 20Gbps Type C (Front)
Realtek® 8126 5Gbps LAN
Intel® Wi-Fi 7
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4 GHz / 5 GHz / 6 GHz* (320MHz) up to 5.8 Gbps
