TPI SX-690 Small Business Server

 SuperMicro X12STL-F Motherboard Features:

• 1 x PCIe 4.0 x8
• 1 x PCIe 4.0 x8 (in x16 slot)
• 1 x PCIe 4.0 x4 (in x8 slot)1 PCIe 3.0 x2 (in x4 slot)
• M.2 Interface: 1 x PCIe 3.0 x4
• M.2 Form Factor: 2280/22110

• Dual LAN with 1GbE with Intel® I210

• Intel® C252 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10

• 1 x VGA D-Sub Connector port

• 2 x SuperDOM with built-in power

• 5 x USB 3.2 Gen1 (2 rear, 1 Type-A, 2 via header), 4 x USB 2.0 (2 rear, 2 via headers)

• Whisper-Quiet (<21dB)

• Kensington Lock Support

• Front I/O Ports: 2 x Audio (HD/AC97) & 2 x USB 3.0 & 2 x USB 2.0

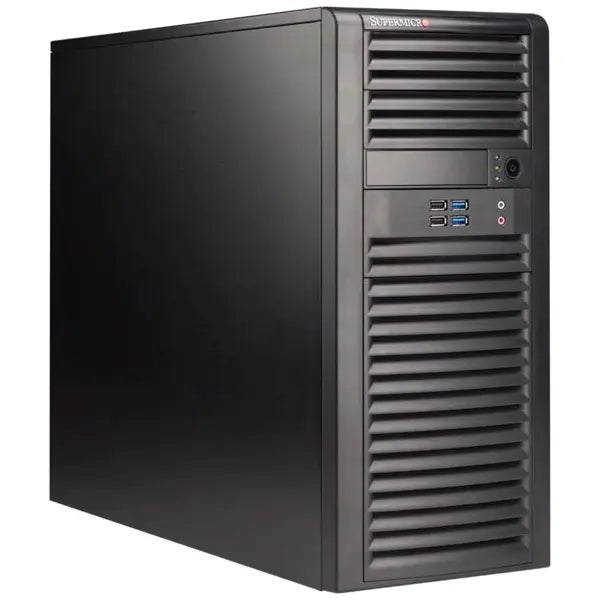

• Mid-Tower Chassis Supports Micro-ATX Motherboard, Sizes – E-ATX/ATX/Micro ATX

• 668W Platinum Level Certified High-Efficiency Power Supply

• 1 x Rear 12cm (1850 RPM) PWM Fan

• 2 x 5.25" External HDD Drive Bays
• 4 x 3.5" Internal HDD Drive Bays
