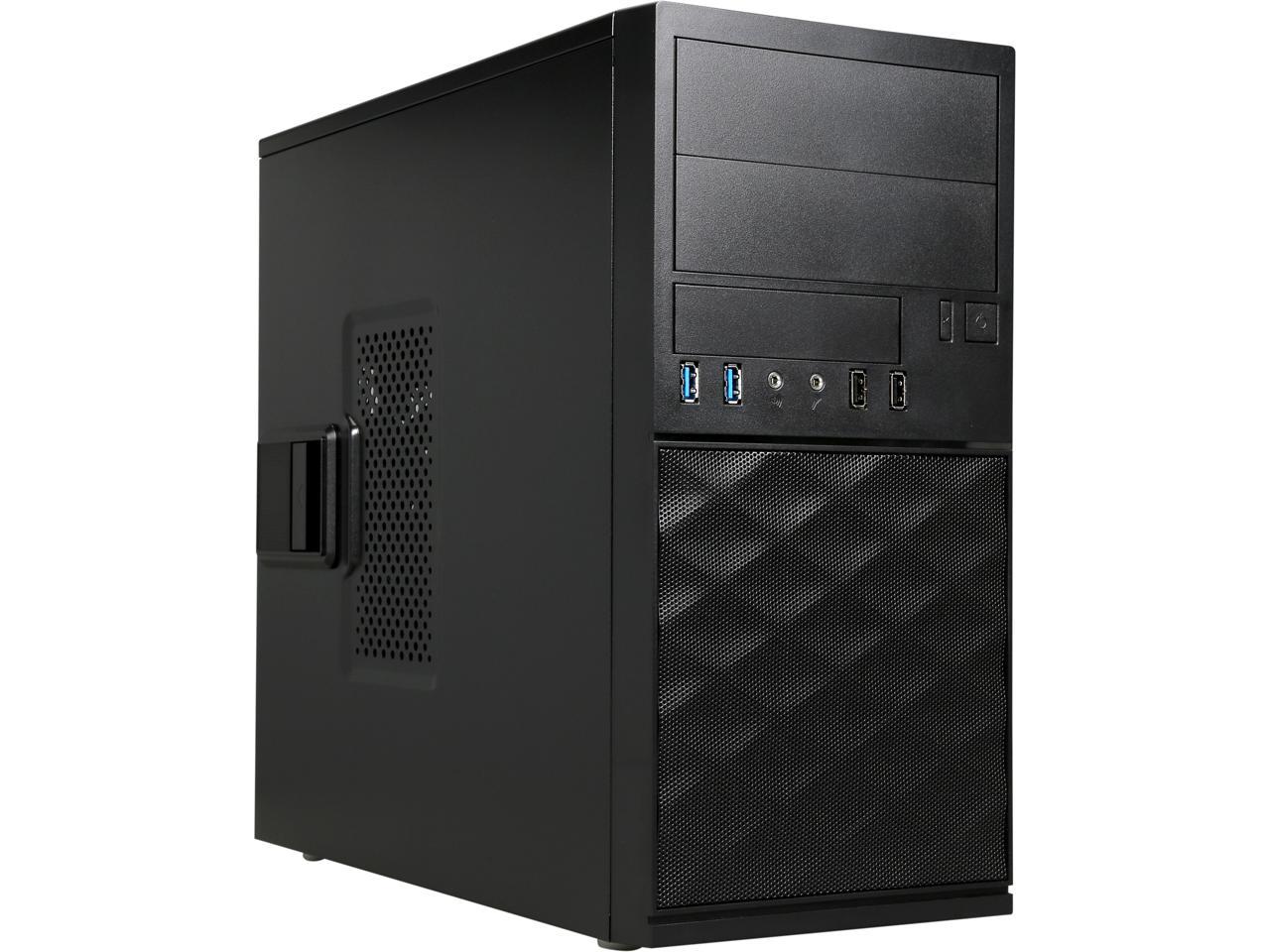

Built with performance, reliability and durability in mind, TPI BX Series Business PC's are the most trusted computer systems in any business environment. Our systems are widely deployed in small, medium and large businesses, universities, medical facilities and government agencies.
Configured with the latest AMD Ryzen™ 5000 G-Series processors with “Zen 3” performance and built-in AMD Radeon™ graphics, TPI BX-690 Business PC delivers incredible performance for business applications.

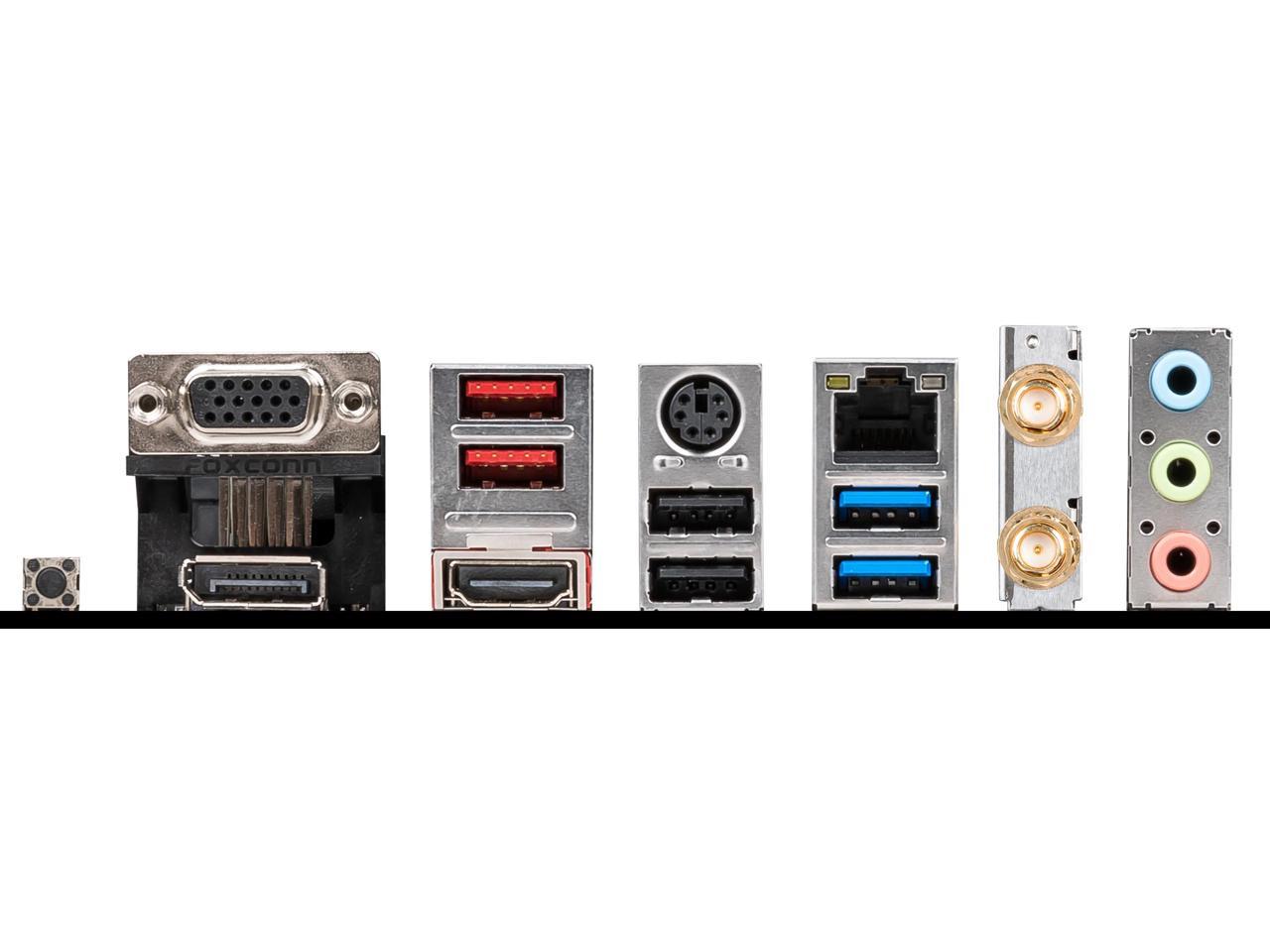

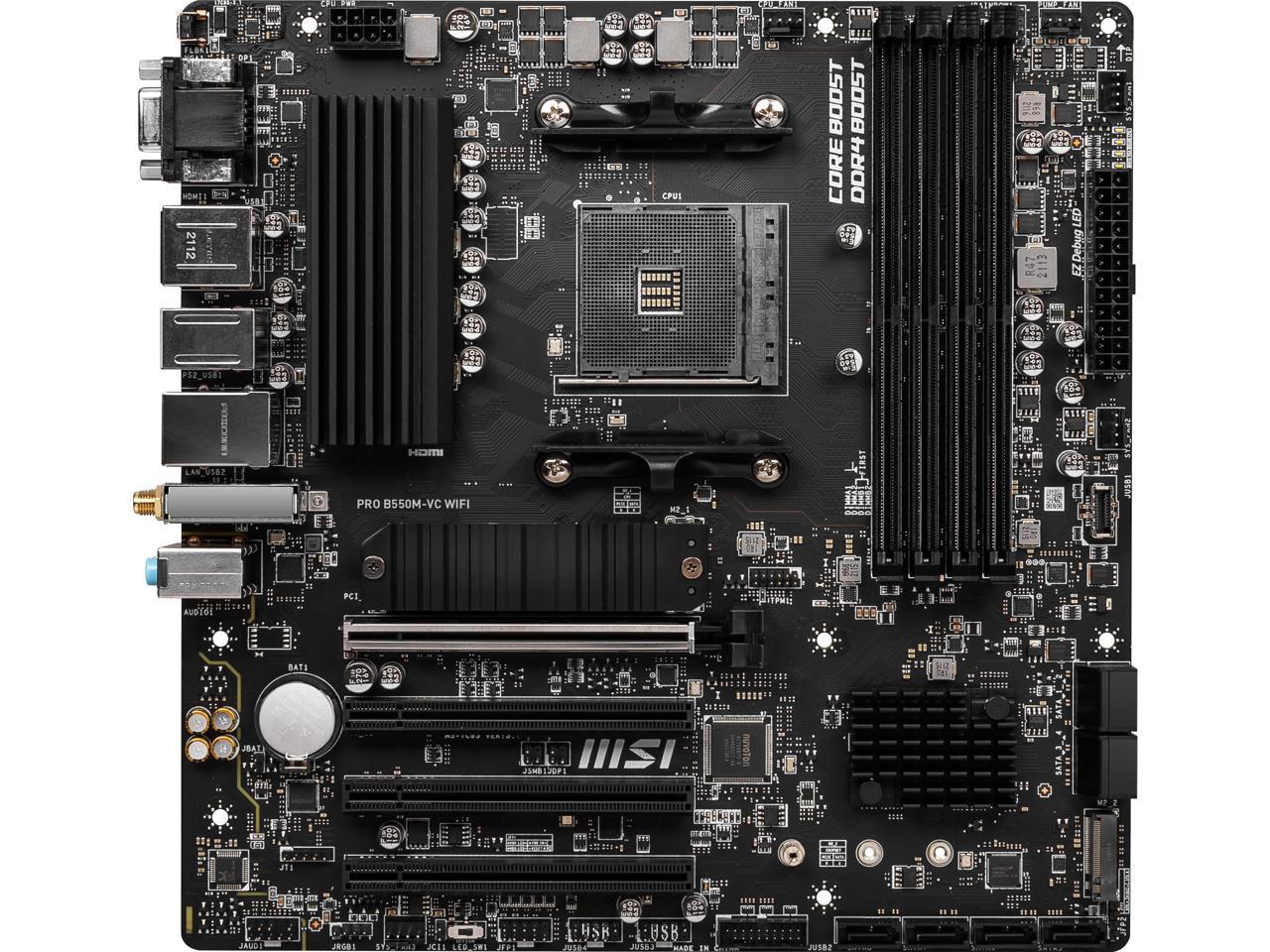

MSI PRO B550M-VC WIFI Motherboard Features:
AMD B550 Chipset
4 x DDR4 memory slots, support up to 128GB
1 x PCIe 3.0/ 4.0 x16 slot (PCI_E1)
3 x PCIe 3.0 x16 slots, support PCIe x1 speed
1 x VGA port, supports resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz
1 x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz
1 x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz
Maximum shared memory of 16 GB
4 x SATA 6Gb/s ports
2 x M.2 slot supports up to PCIe 4.0 / 3.0 x4
Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
3 x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)
6 x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
2 x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
2 x USB 3.2 Gen 2 10Gbps Type-A ports on the back panel
7.1-Channel High Definition Audio
1 x Realtek® 8RTL8111GN / RTL8111HN 1Gbps LAN controller
AMD Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4 GHz/ 5 GHz/ 6 GHz (160MHz) up to 2.4 Gbps
